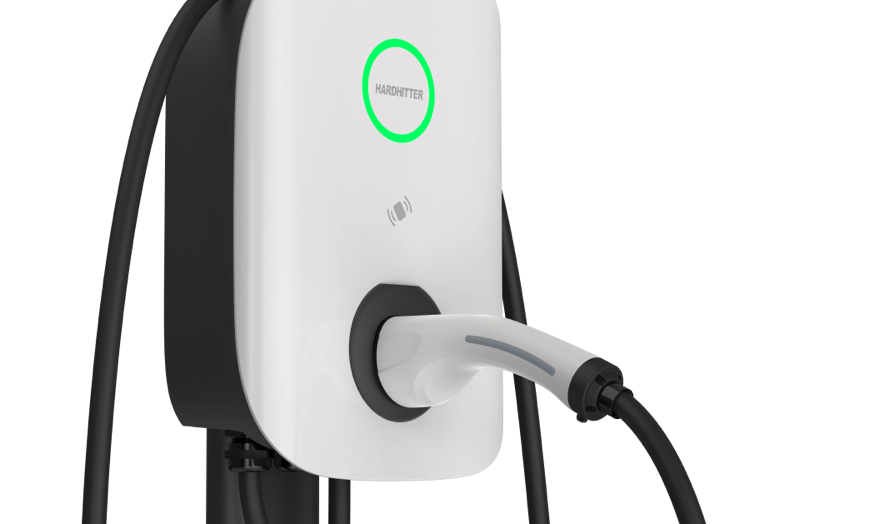

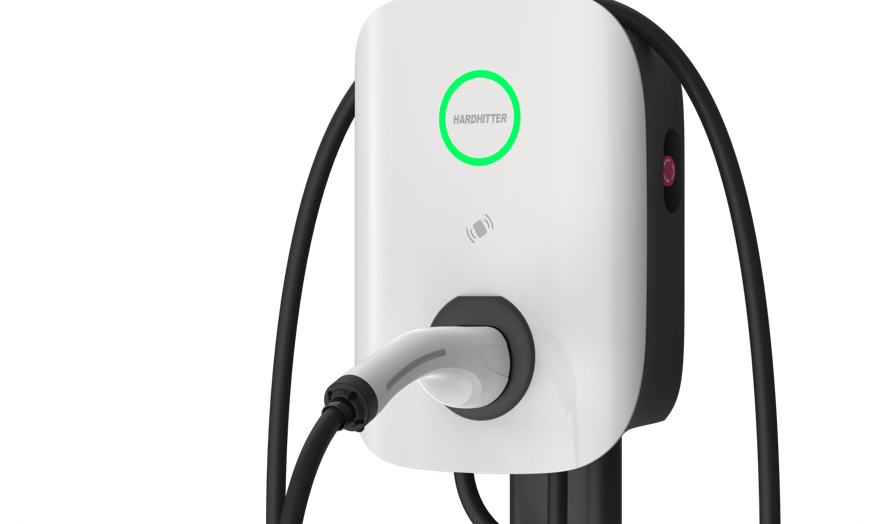

Product Introduction

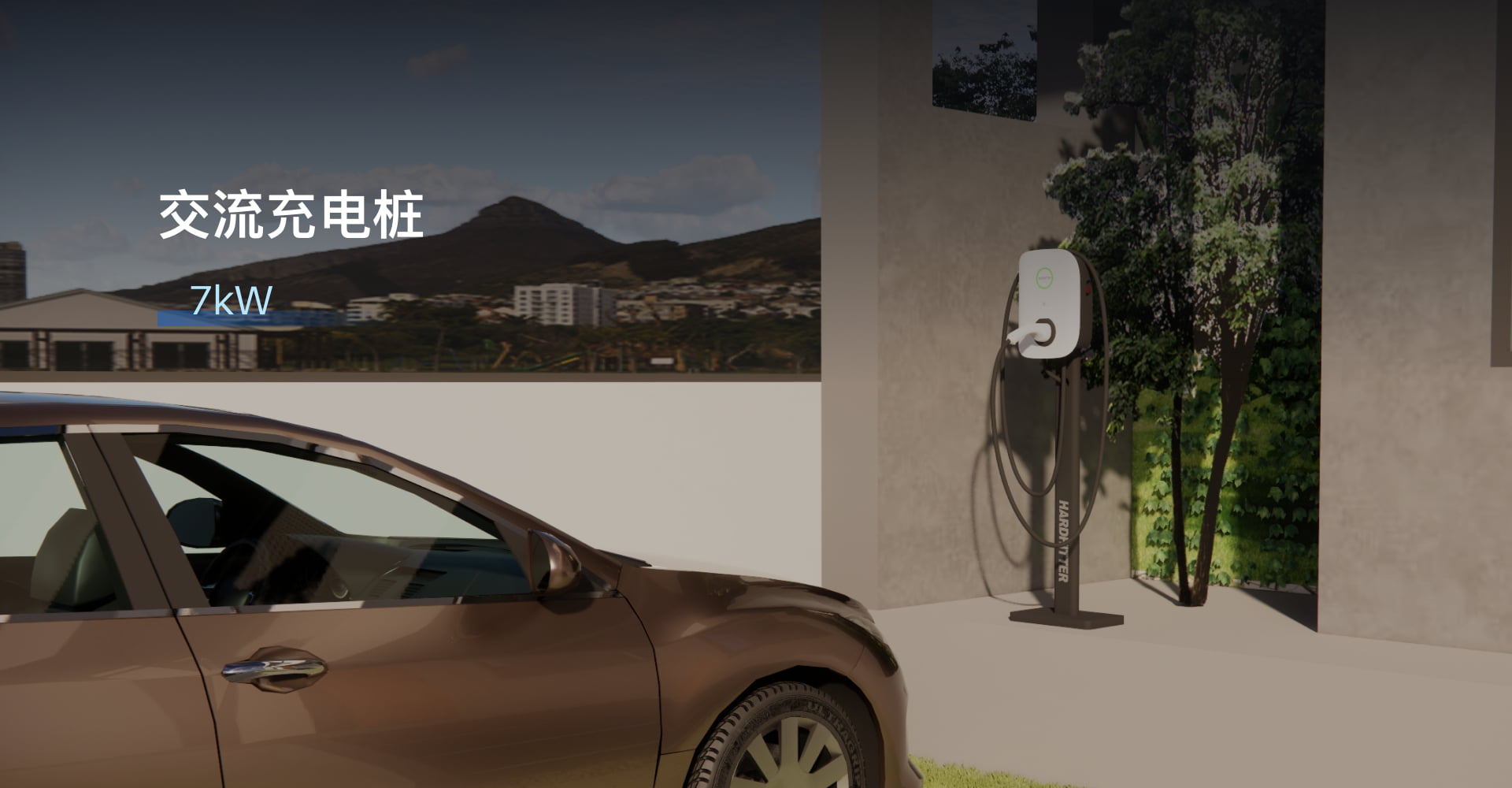

Supports Wall-mounted and Pedestaltwo types of Installation Method, compatible with 99% of new energy vehicles, through APP and built-in data management platform for intelligent control. Supports customization, 适用于residential停车位 and 小型充电站.
Charging Power
Technical Parameters
AC Input Voltage
Single Phase 220V
AC Power Frequency
50±5Hz
Output Power
7kW
Rated Output Current
32A
Leakage Protection Device
0.7J
Electrostatic Discharge Immunity
3 Grade
Radiated RF Immunity
3 Grade
EFT Immunity
3 Grade
Surge Immunity
3 Grade
Voltage Dips and Interruptions
GB/T 17626.11
Immunity Test
GB/T 17626.11
Number of Connectors
Single Connector (Charging Connection Mode C)
Charging Interface
Complies with GB/T20234.1-2015；
Charging Interface
GB/T20234.2-2015
Metering
1 Grade
Payment Method
APP QR Code Charging, RFID Card
Dielectric Strength
≥2000
Leakage Current
≤3.5
Protection Rating
≥IP55
Communication Interface
4G/WiFi
HMI (Human Machine Interface)
LED Indicator
