Product Introduction

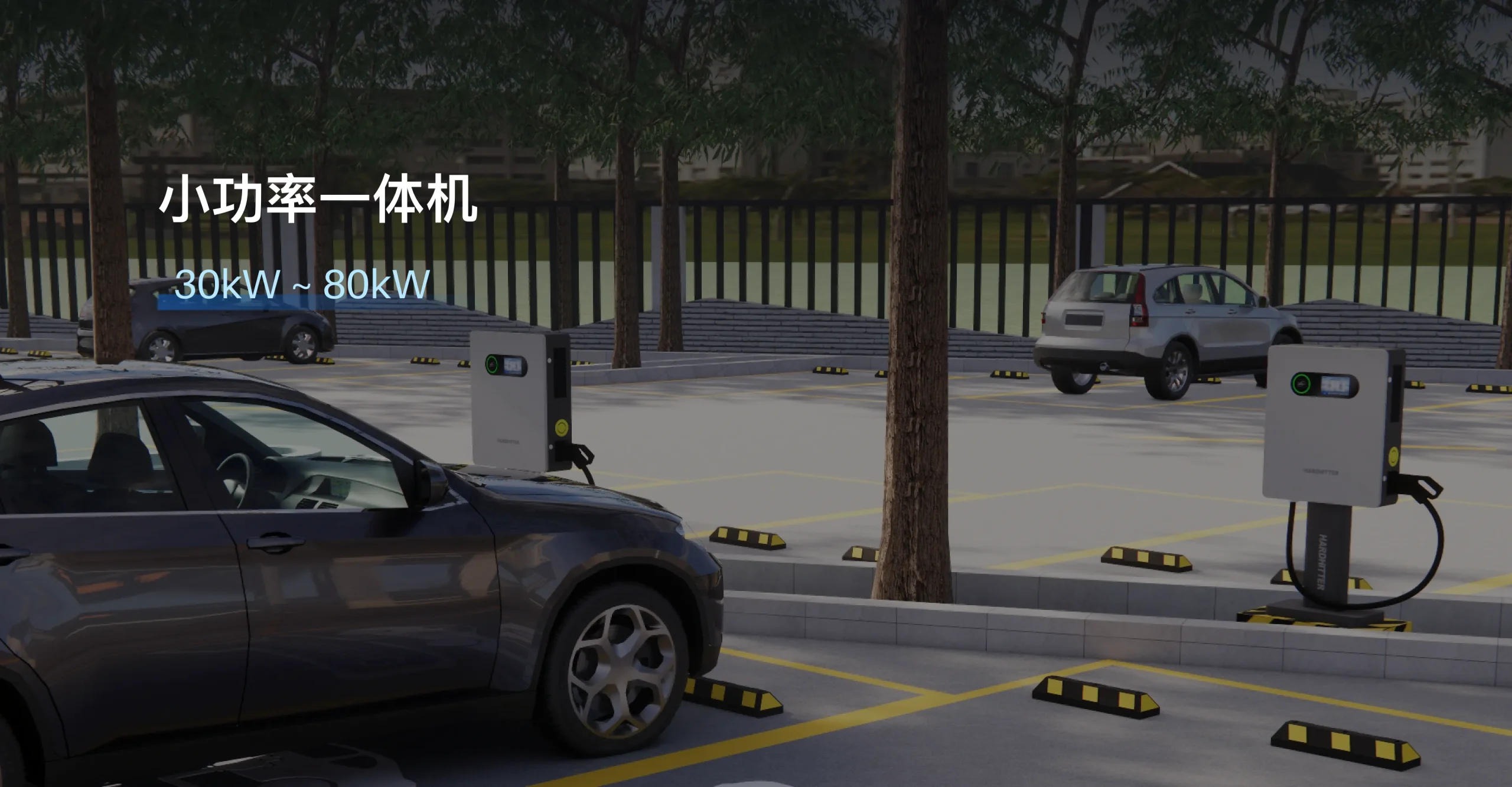

Supports Wall-mounted and Pedestaltwo types of Installation Method, small size, fashionable appearance, 4个版本供residential使用 and operation, features intelligent charging control and comprehensive charging process monitoring, Supports APP控制 and back-end data monitoring.
Charging Power
Technical Parameters

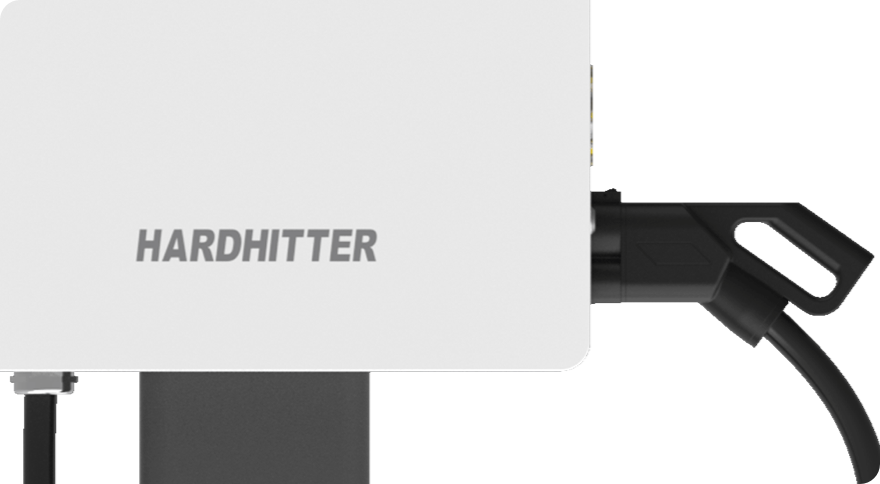

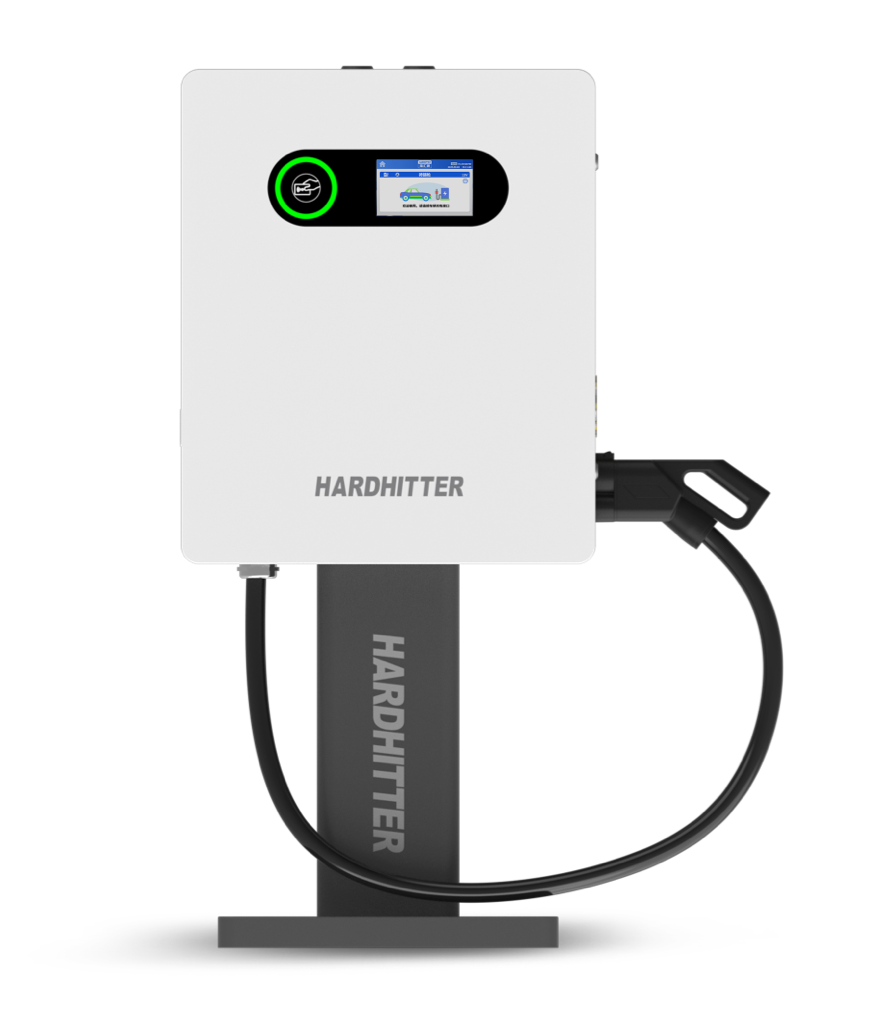

Low Power Single Connector Integrated Unit
Charging Equipment
Rated Power
30kW/40kW
Installation Method
Pedestal/Wall-mounted
Cabling Method
Bottom-in, Bottom-out
Dimensions
Wall-mounted：670*300*800mm(W*D*H) Pedestal：670*300*1420mm(W*D*H)
Input Voltage
AC380V±15%
Input Frequency
50±1Hz
Rated Output Voltage
DC1000V
Output Voltage
200~1000V
Single Connector Current Range
30kW: 0~100A
40kW: 0~125A
40kW: 0~125A
Metering Accuracy
2.0 Grade
Voltage Regulation Accuracy
≤±0.5%
Current Regulation Accuracy
≤±1%
Ripple Coefficient
≤±0.5%
Module Type
30kW：30kW
40kW：40kW
40kW：40kW
Functional Design
HMI (Human Machine Interface)
LED Indicator
Start Method
APP Start / QR Code Start / Plug and Charge
Communication Interface
4G/Ethernet
Operating Temperature
-40℃~+60℃
Environmental Indicators
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Cooling Method
Air Cooled

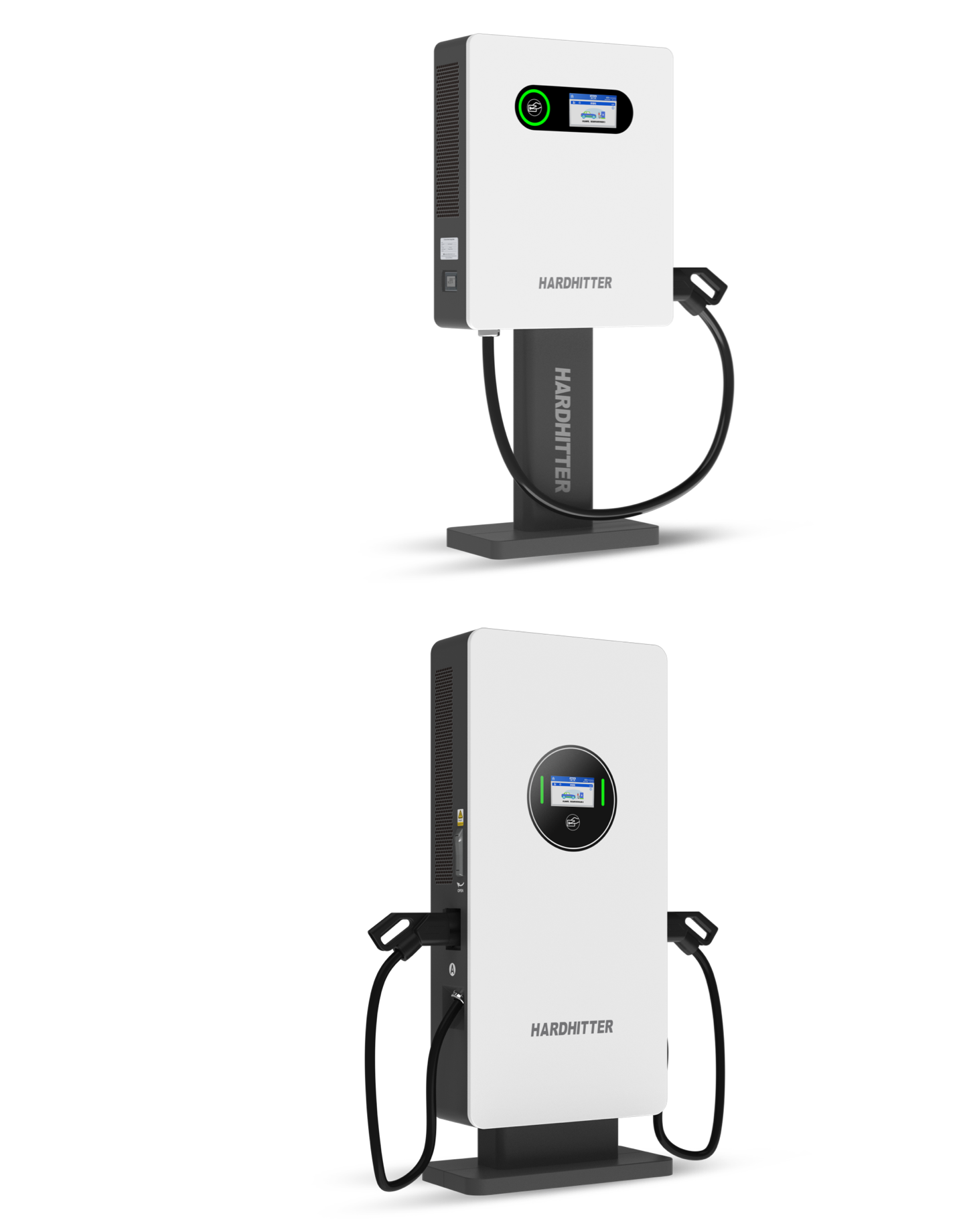

Low Power Dual Connector Integrated Unit
Charging Equipment
Rated Power
60kW/80kW
Installation Method
Pedestal/Wall-mounted
Cabling Method
Bottom-in, Bottom-out
Dimensions
Wall-mounted：720*260*1500mm(W*D*H) Pedestal：720*260*1700mm(W*D*H)
Input Voltage
AC380V±15%
Input Frequency
50±1Hz
Rated Output Voltage
DC1000V
Output Voltage
200~1000V
Single Connector Current Range
60kW: 0~200A
80kW: 0~250A
80kW: 0~250A
Metering Accuracy
2.0 Grade
Voltage Regulation Accuracy
≤±0.5%
Current Regulation Accuracy
≤±1%
Ripple Coefficient
≤±0.5%
Module Type
60kW：30kW
80kW：40kW
80kW：40kW
Functional Design
HMI (Human Machine Interface)
LED Indicator + 7-inch Color Touch Screen
Start Method
APP Start / QR Code Start / Plug and Charge
Communication Interface
4G/Ethernet
Operating Temperature
-40℃~+60℃
Environmental Indicators
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Cooling Method
Air Cooled
