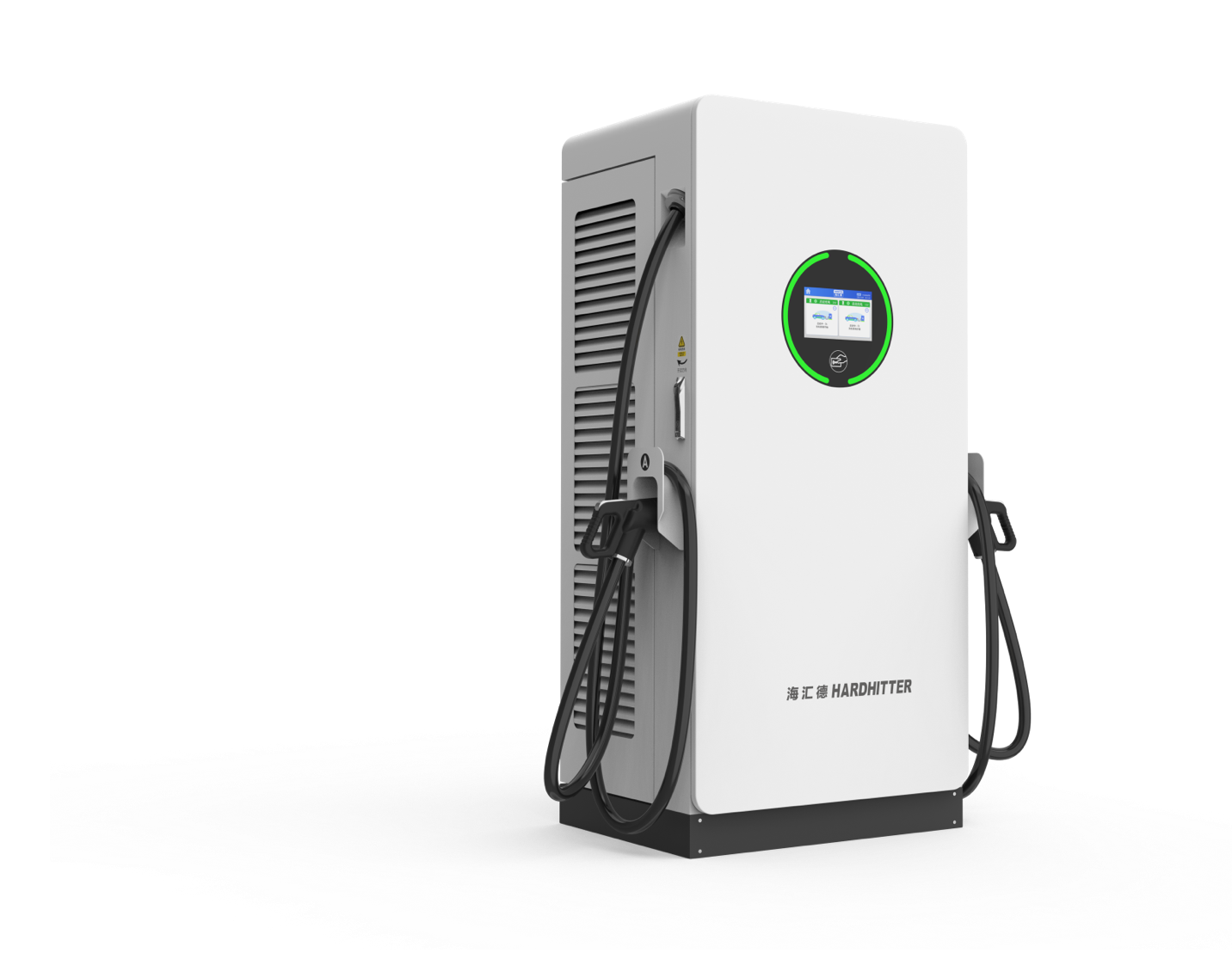

Product Introduction

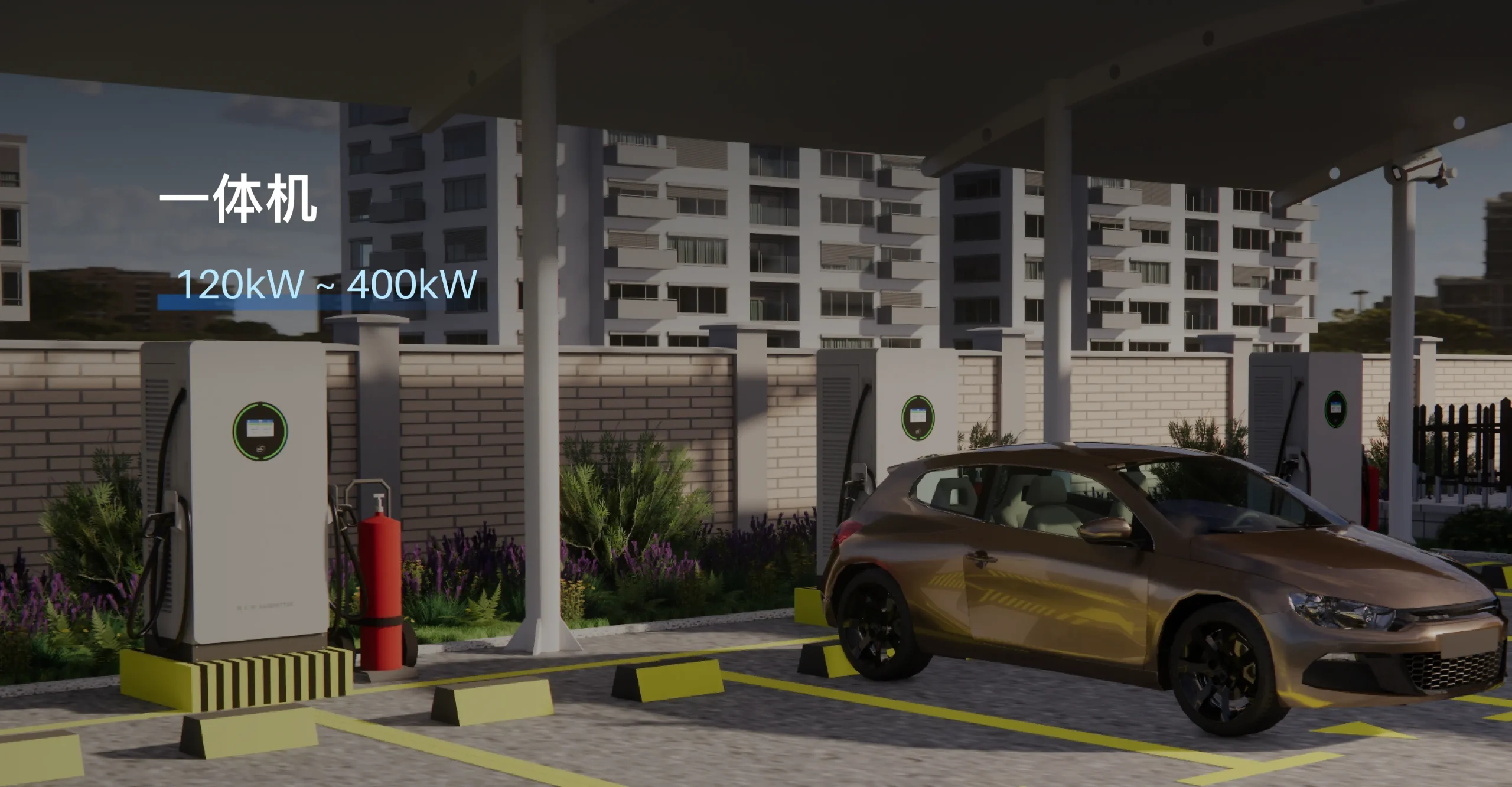

本产品 include 一机单枪、一机双枪、一机四枪等机型. 一体机将功率单元、充电枪等组合成充电柜, 结构简单, 安装方便, 适用于分散式充电站、重卡快速充电站、港口快速充电站等场景.
Charging Power
Technical Parameters
Charging Equipment
Model
HQC-23
Rated Power
200kW/400kW
Installation Method
Floor-standing
Dimensions
200kW:810*600*1700mm(W*D*H)
400kW:810*870*1700mm(W*D*H)
400kW:810*870*1700mm(W*D*H)
Input Voltage
AC380V±15%
Input Frequency
50±1Hz
Rated Output Voltage
DC1000V
Output Voltage Range
200~1000V
Single Connector Current Range
0~250A
Metering Accuracy
2.0 Grade
Voltage Regulation Accuracy
≤±0.5%
Current Regulation Accuracy
≤±1%
Ripple Coefficient
≤±0.5%
Module Type
40kW
Functional Design
HMI (Human Machine Interface)
7-inch Color Touch Screen, LED Indicator
Start Method
APP Start / RFID Card Start / QR Code Start
Communication Interface
4G/Ethernet
Environmental Indicators
Operating Temperature
-40℃~+60℃
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Cooling Method
Air Cooled
Firmware Info
Firmware Version
A2.7
