Product Introduction

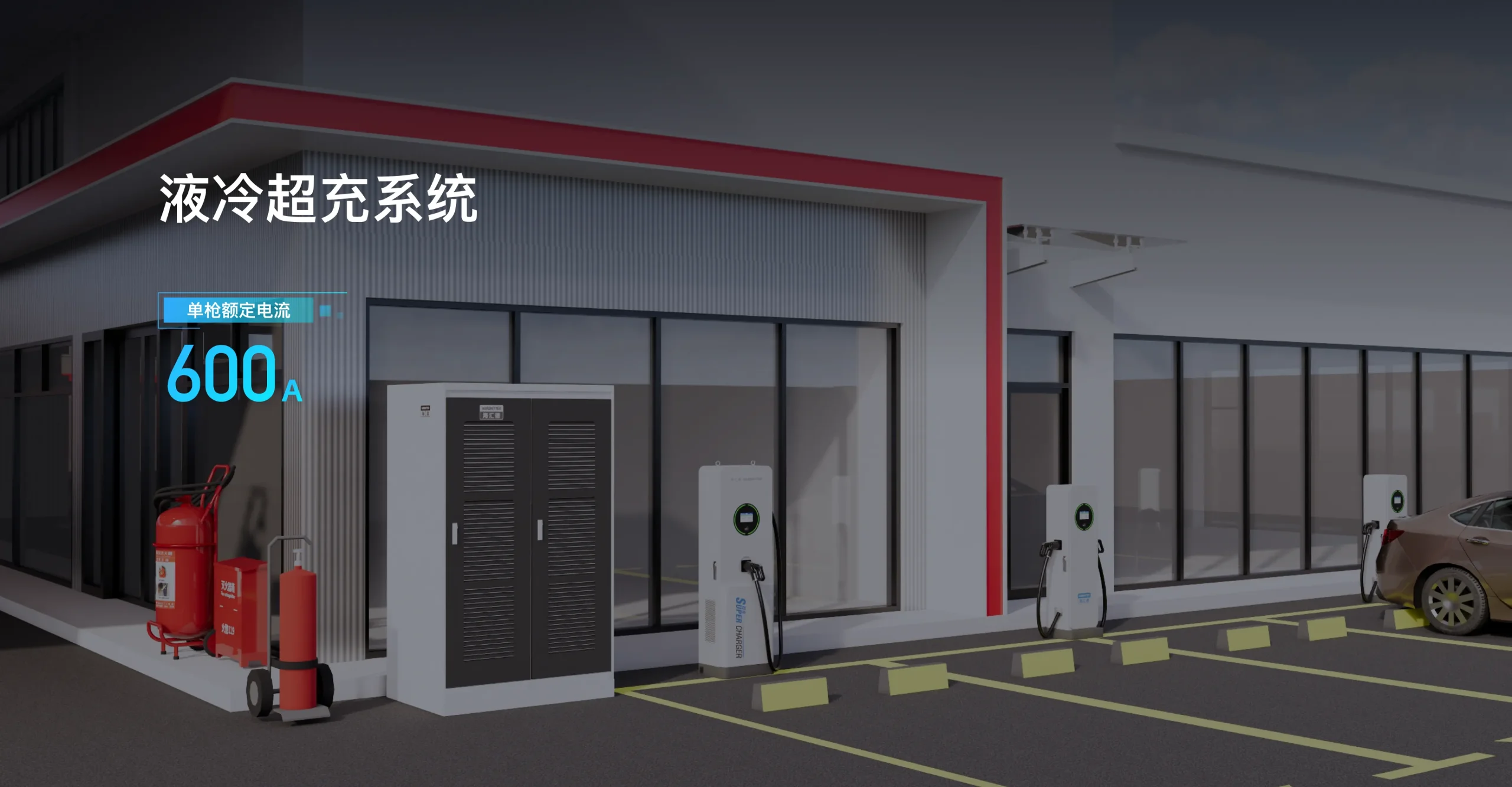

Liquid-cooled super charging terminal with a maximum output power of 600kW. Charging for 5 minutes can travel more than 300 kilometers. The charging speed is already close to the speed of refueling.
Technical Parameters
Basic Information
Installation Method
Floor-standing
Cabling Method
Bottom-in, Top-out
Dimensions
500*350*1650mm(W*D*H)
额定输出电流
600A(单枪)
Output Voltage Range
200~1000V
Single Connector Current Range
0~600A
Metering Accuracy
2.0 Grade
Functional Design
HMI (Human Machine Interface)
7-inch Capacitive Color Display Touch Screen, LED Indicator
Start Method
Plug and Charge、 Scheduled Auto-start、 RFID Card (CPU Card)、 Manual Start/Stop、 Remote Control Start、 Scan QR Code to Charge
Safety Design
Safety Features
Connector Temperature Detection、 Electronic Lock Status Detection、 Output Overvoltage、 Output Undervoltage、 Overload Protection、 Short Circuit Protection、 Grounding Protection、 Reverse Polarity Protection、 Emergency Stop Protection
Environmental Indicators
Operating Temperature
-40℃~+60℃
Storage Temperature
-40℃~+70℃
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Cooling Method
Liquid Cooled
