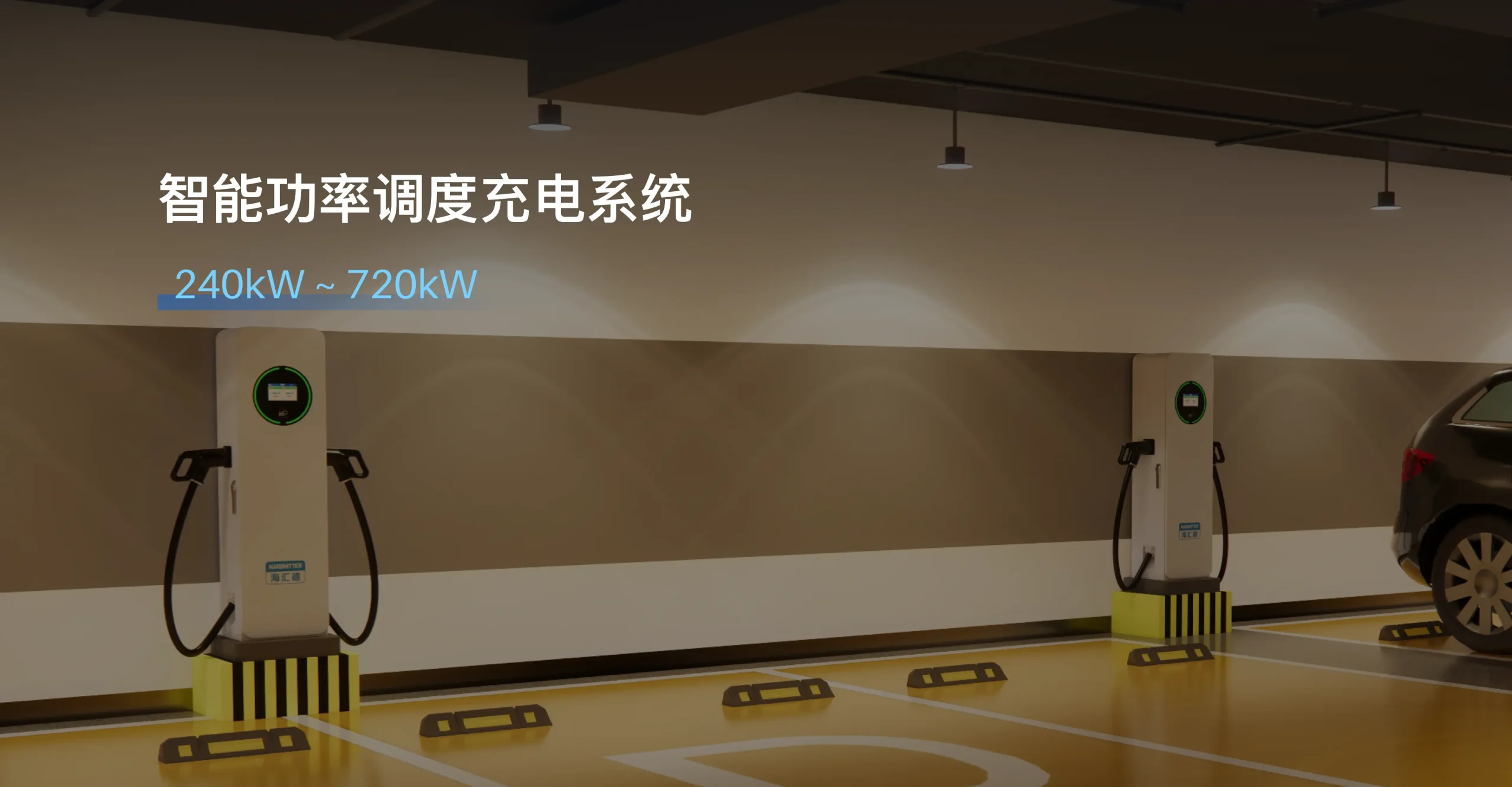

Product Introduction
This product can achieve charging methods of one station for multiple vehicles, one machine with multiple connectors, and one connector with multiple variations. By adopting intelligent power scheduling technology, AC incoming lines can be shared and reused, with low comprehensive loss. The charging space layout can be customized according to site conditions to maximize the use of charging space.
Charging Power
Technical Parameters

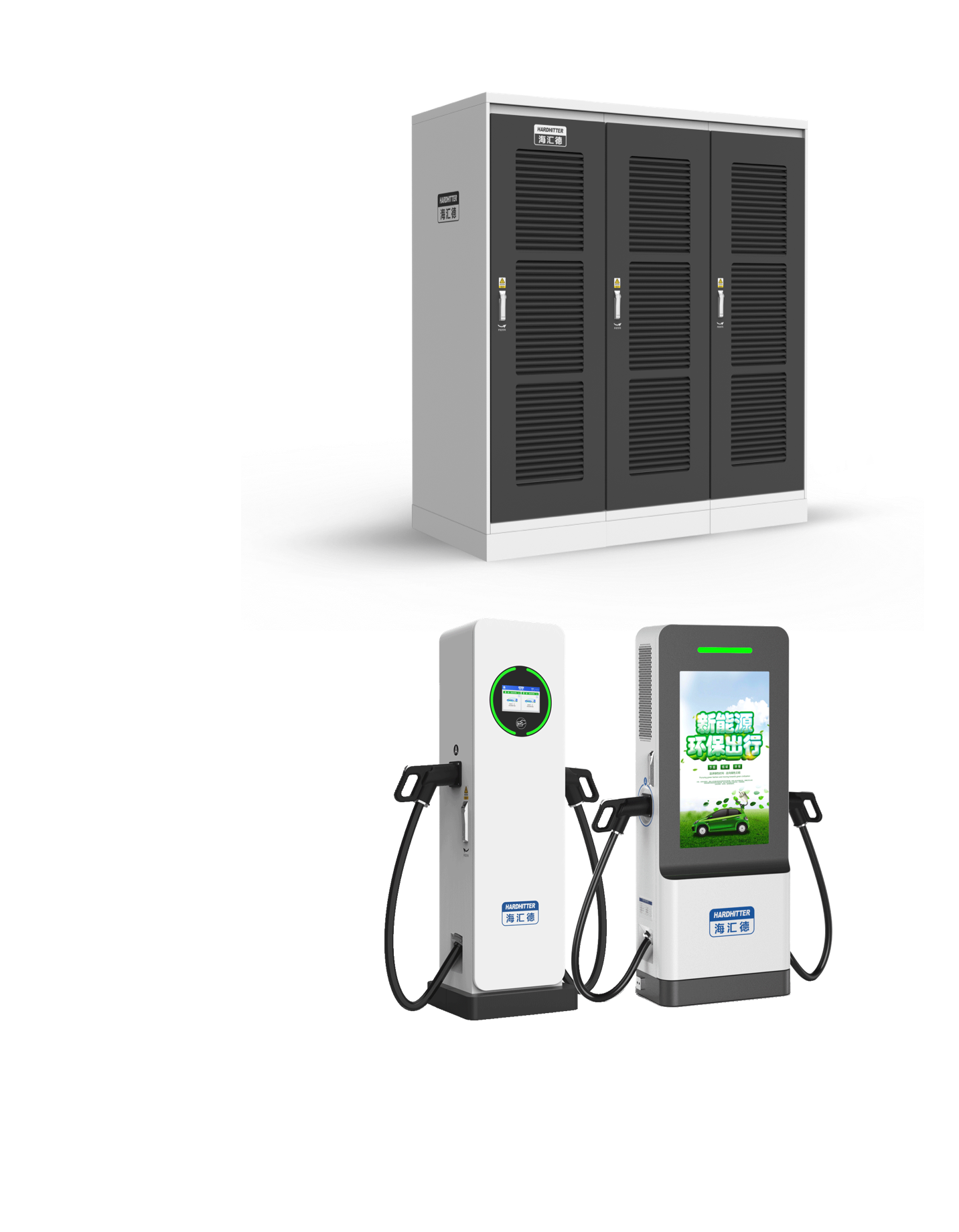

Main Unit
General Parameters
Cabling Method
Top/Bottom entry optional
Input Voltage
AC380V±15%
Input Frequency
50Hz±1Hz
Rated Output Voltage
DC1000V
Output Voltage
200~1000V
Power Allocation
Matrix
Current Limit Protection Value
≥110%
Voltage Regulation Accuracy
≤±0.5%
Current Regulation Accuracy
≤±1%
Ripple Coefficient
Peak: ≤±0.5%
Operating Temperature
-40℃~+60℃
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Cooling Method
Air Cooled
Noise Control
Ⅱ Grade
Communication Interface
4G/Ethernet
Module Type
40kW
240kW Main Unit
Rated Power
240kW
Dimensions
710*940*1850mm(W*D*H)
额定输出电流
240A
Number of Modules
6
480kW Main Unit
Rated Power
480kW
Dimensions
1360*940*1850mm(W*D*H)
额定输出电流
480A
Number of Modules
12
720kW Main Unit
Rated Power
720kW
Dimensions
2010*940*1850mm(W*D*H)
额定输出电流
720A
Number of Modules
18
Dual Connector Advertising Charging Terminal
Functional Design
Dimensions
600*290*1490mm(W*D*H)
Single Connector Current Range
0~250A
Metering Accuracy
2.0 Grade
HMI (Human Machine Interface)
7-inch Capacitive Color Touch Screen, LED Indicator
Start Method
Plug and Charge、 Scheduled Auto-start、 RFID Card (CPU Card)、 Manual Start/Stop、 Remote Control Start、 Scan QR Code to Charge
Safety Features
Connector Temperature Detection、 Electronic Lock Status Detection、 Output Overvoltage、 Output Undervoltage、 Overload Protection、 Short Circuit Protection、 Grounding Protection、 Reverse Polarity Protection、 Emergency Stop Protection等
Environmental Indicators
Operating Temperature
-40℃~+60℃
Storage Temperature
-40℃~+70℃
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
Dual Connector Floor-standing Charging Terminal
Functional Design
Dimensions
450*295*1400mm(W*D*H)
Single Connector Current Range
0~250A
Metering Accuracy
2.0 Grade
HMI (Human Machine Interface)
7-inch Capacitive Color Touch Screen, LED Indicator
Start Method
Plug and Charge、 Scheduled Auto-start、 RFID Card (CPU Card)、 Manual Start/Stop、 Remote Control Start、 Scan QR Code to Charge
Safety Features
Connector Temperature Detection、 Electronic Lock Status Detection、 Output Overvoltage、 Output Undervoltage、 Overload Protection、 Short Circuit Protection、 Grounding Protection、 Reverse Polarity Protection、 Emergency Stop Protection等
Environmental Indicators
Operating Temperature
-40℃~+60℃
Storage Temperature
-40℃~+70℃
Operating Humidity
5%~95% Non-condensing
Operating Altitude
≤2000m
Protection Rating
IP54
